Submission ID: 00006
Upright SIFT (OpenCV), DEGENSAC
Processed: 20-04-22. Download link: sid-00006-sift-upright-8k-both-degensac.json
This page ranks the submission against all others using the same number of keypoints, regardless of descriptor size. Please hover over table headers for descriptions on metrics and full scene names.
Metadata
- Authors: Challenge organizers (contact)
- Keypoint: sift-lowth
- Descriptor: sift-upright (128 float32: 512 bytes)
- Number of features: 8000
- Summary: Upright SIFT with (up to) 8000 features, using the built-in matcher (bidirectional filter with the both strategy) and DEGENSAC, and setting keypoint orientation to a constant value.
- Paper: N/A
- Website: https://opencv.org
- Origin: Baseline
- Flags: is_baseline
Phototourism / Stereo track
mAA at 10 degrees: 0.48742 (±0.00042 over 3 run(s) / ±0.13876 over 9 scenes)
Rank (per category): 91 (of 147)
| Scene | Features | Matches (matcher) |
Matches (filter) |
Matches (final) |
Rep. @ 3 px. | MS @ 3 px. | mAA(5o) | mAA(10o) |
| bm | 7955.7 | 442.6 | 442.6 | 264.3 | 0.521 Rank: 71/147 |
0.946 Rank: 47/147 |
0.22854 (±0.00081) Rank: 46/147 |
0.34359 (±0.00315) Rank: 50/147 |
| fcs | 7838.4 | 522.3 | 522.3 | 351.1 | 0.465 Rank: 17/147 |
0.890 Rank: 113/147 |
0.56286 (±0.00083) Rank: 108/147 |
0.67745 (±0.00152) Rank: 109/147 |
| lms | 7720.4 | 416.2 | 416.2 | 209.3 | 0.467 Rank: 65/147 |
0.692 Rank: 72/147 |
0.51072 (±0.00135) Rank: 80/147 |
0.62260 (±0.00184) Rank: 78/147 |
| lb | 7935.5 | 430.0 | 430.0 | 242.1 | 0.493 Rank: 20/147 |
0.746 Rank: 80/147 |
0.43513 (±0.00081) Rank: 46/147 |
0.53153 (±0.00105) Rank: 68/147 |
| mc | 7779.3 | 621.8 | 621.8 | 414.7 | 0.549 Rank: 19/147 |
0.966 Rank: 14/147 |
0.38840 (±0.00081) Rank: 46/147 |
0.53830 (±0.00234) Rank: 61/147 |
| mr | 7756.3 | 712.4 | 712.4 | 516.9 | 0.479 Rank: 26/147 |
0.981 Rank: 5/147 |
0.33238 (±0.00120) Rank: 39/147 |
0.44247 (±0.00123) Rank: 42/147 |
| psm | 7768.5 | 310.8 | 310.8 | 177.7 | 0.407 Rank: 23/147 |
0.619 Rank: 70/147 |
0.10918 (±0.00058) Rank: 116/147 |
0.19595 (±0.00131) Rank: 117/147 |
| sf | 7859.7 | 733.8 | 733.8 | 491.7 | 0.498 Rank: 21/147 |
0.832 Rank: 116/147 |
0.44540 (±0.00134) Rank: 108/147 |
0.56692 (±0.00088) Rank: 111/147 |
| spc | 7849.4 | 380.0 | 380.0 | 205.8 | 0.501 Rank: 29/147 |
0.795 Rank: 119/147 |
0.34325 (±0.00309) Rank: 114/147 |
0.46797 (±0.00183) Rank: 114/147 |
| avg | 7829.2 | 507.8 | 507.8 | 319.3 | 0.487 Rank: 23/147 |
0.830 Rank: 89/147 |
0.37287 (±0.00076) Rank: 84/147 |
0.48742 (±0.00042) Rank: 91/147 |
We show the inliers that survive the robust estimation loop (i.e. RANSAC), or those supplied with the submission if using custom matches, and use the depth estimates to determine whether they are correct. We draw matches above a 5-pixel error threshold in red, and those below are color-coded by their error, from 0 (green) to 5 pixels (yellow). Matches for which we do not have depth estimates are drawn in blue. Please note that the depth maps are estimates and may contain errors.

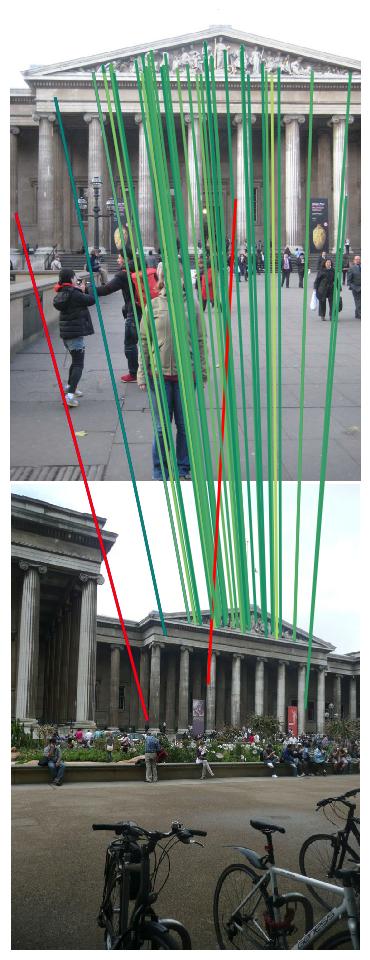

— british museum —

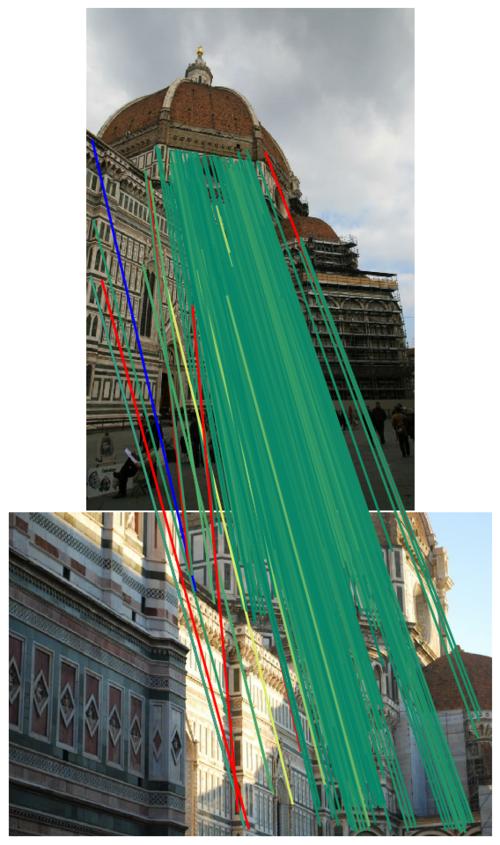

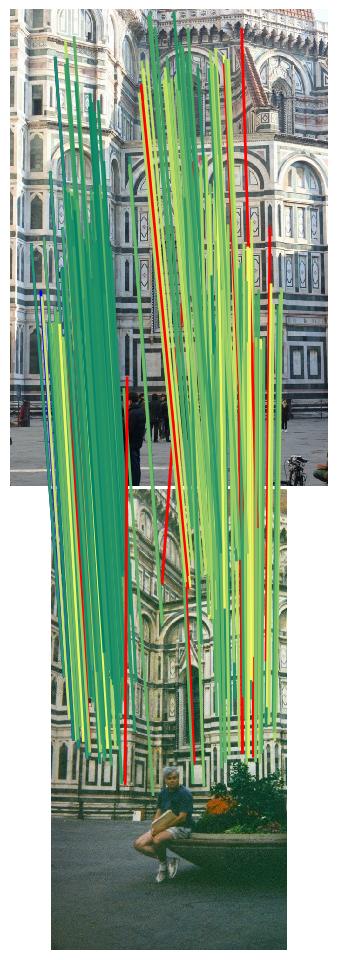

— florence cathedral side —

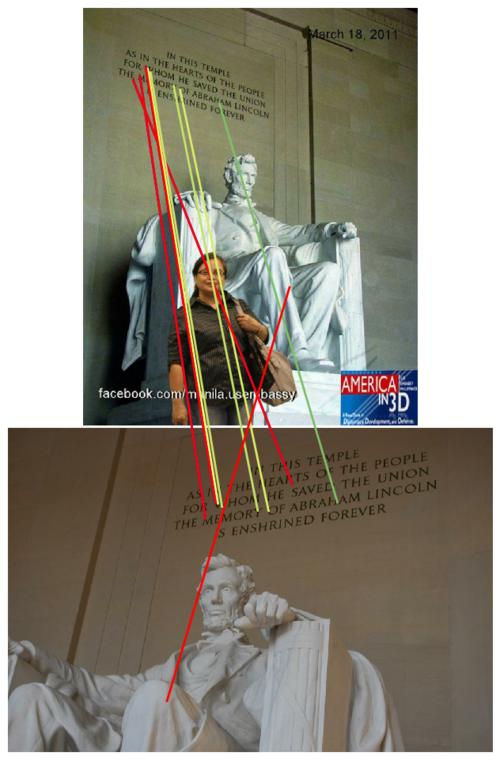

— lincoln memorial statue —
— london bridge —
— milan cathedral —
— mount rushmore —

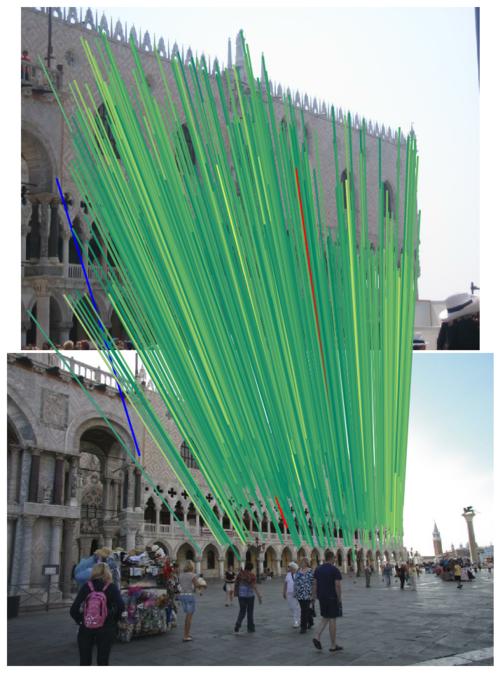

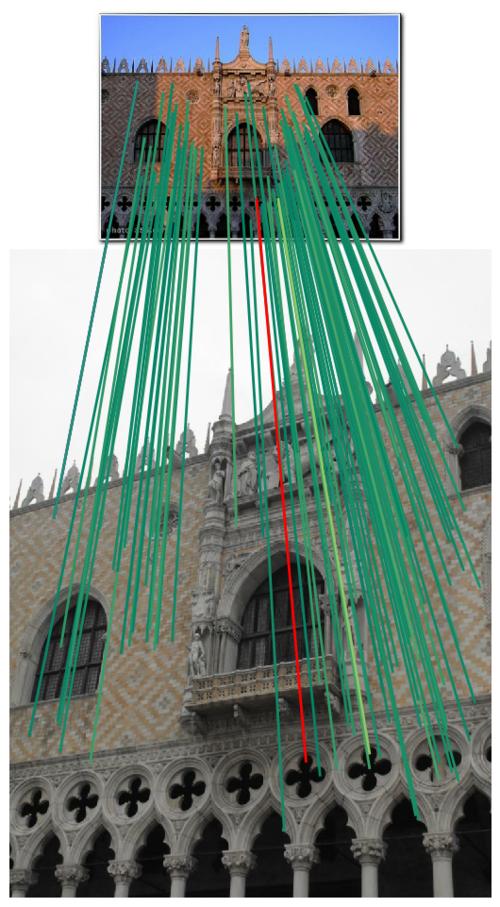

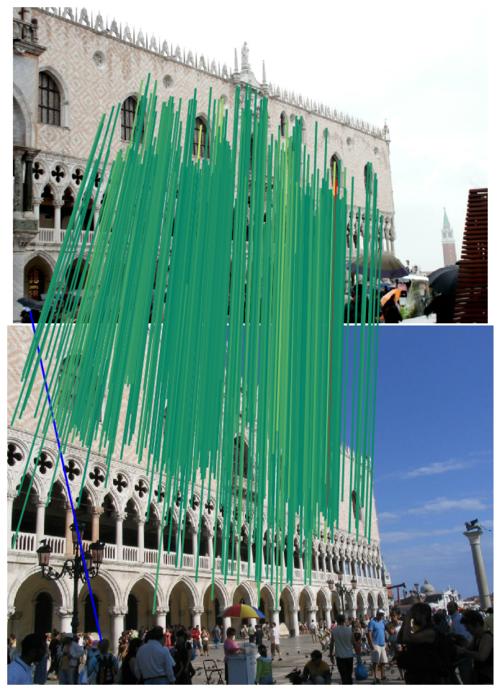

— piazza san marco —

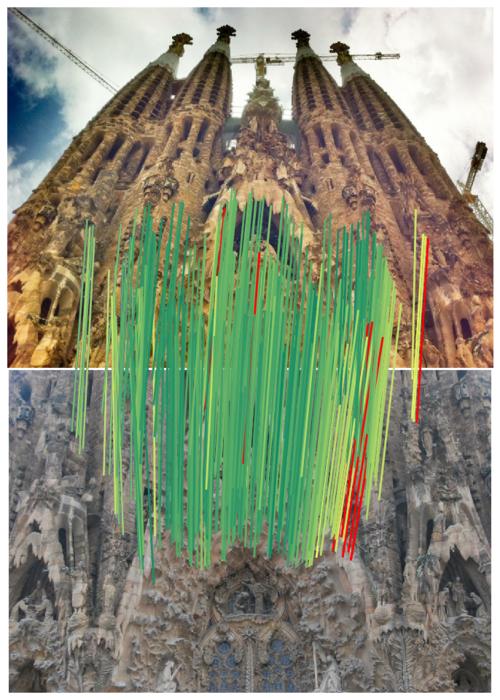

— sagrada familia —

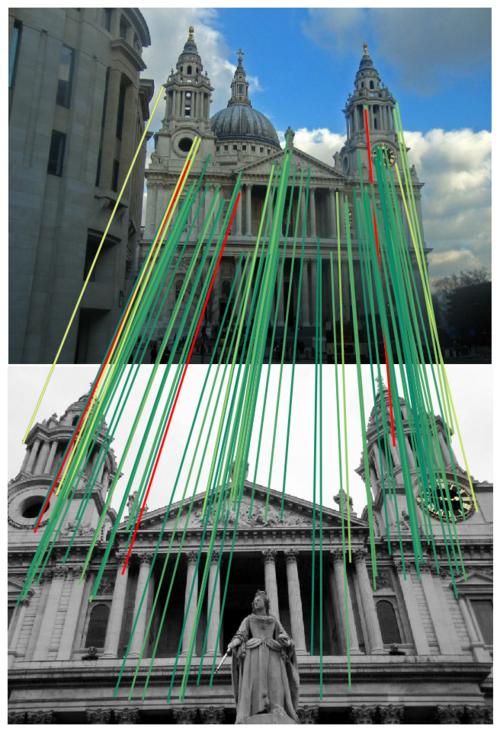

— saint paul's cathedral —
Phototourism / Multiview track
mAA at 10 degrees: 0.65664 (±0.00231 over 3 run(s) / ±0.14048 over 9 scenes)
Rank (per category): 101 (of 147)
| Scene | Features | Matches (input) |
RegistrationRatio (%) | Number of Landmarks |
Track Length | ATE | mAA(50) | mAA(100) |
| bm | 7955.7 | 439.28 | 99.45 Rank: 118/147 |
2831.26 Rank: 82/147 |
4.538 Rank: 129/147 |
0.57115 Rank: 100/147 |
0.38453 (±0.00258) Rank: 96/147 |
0.52063 (±0.00363) Rank: 99/147 |
| fcs | 7838.4 | 553.35 | 96.54 Rank: 131/147 |
4474.77 Rank: 84/147 |
4.370 Rank: 96/147 |
0.29537 Rank: 127/147 |
0.66890 (±0.01052) Rank: 127/147 |
0.74179 (±0.01151) Rank: 127/147 |
| lms | 7720.4 | 454.26 | 98.88 Rank: 85/147 |
3439.37 Rank: 70/147 |
4.328 Rank: 112/147 |
0.28872 Rank: 65/147 |
0.81444 (±0.00584) Rank: 76/147 |
0.87421 (±0.00434) Rank: 73/147 |
| lb | 7935.5 | 520.42 | 98.47 Rank: 56/147 |
3507.70 Rank: 43/147 |
4.500 Rank: 89/147 |
0.50068 Rank: 75/147 |
0.62257 (±0.01024) Rank: 82/147 |
0.72126 (±0.00815) Rank: 82/147 |
| mc | 7779.3 | 615.63 | 99.54 Rank: 86/147 |
4435.92 Rank: 63/147 |
4.621 Rank: 77/147 |
0.40288 Rank: 71/147 |
0.50116 (±0.01684) Rank: 73/147 |
0.64324 (±0.01687) Rank: 84/147 |
| mr | 7756.3 | 718.86 | 94.82 Rank: 41/147 |
5472.88 Rank: 44/147 |
4.287 Rank: 52/147 |
0.46642 Rank: 11/147 |
0.43031 (±0.00508) Rank: 75/147 |
0.54163 (±0.00670) Rank: 78/147 |
| psm | 7768.5 | 307.67 | 91.61 Rank: 71/147 |
3549.65 Rank: 56/147 |
3.220 Rank: 88/147 |
0.67821 Rank: 51/147 |
0.29275 (±0.01412) Rank: 106/147 |
0.39178 (±0.01774) Rank: 106/147 |
| sf | 7859.7 | 731.44 | 96.47 Rank: 124/147 |
6186.97 Rank: 63/147 |
4.396 Rank: 72/147 |
0.33496 Rank: 88/147 |
0.69824 (±0.00459) Rank: 102/147 |
0.78058 (±0.00409) Rank: 106/147 |
| spc | 7849.4 | 389.19 | 95.68 Rank: 136/147 |
3426.24 Rank: 98/147 |
4.060 Rank: 114/147 |
0.60094 Rank: 127/147 |
0.59656 (±0.00608) Rank: 126/147 |
0.69463 (±0.00492) Rank: 128/147 |
| avg | 7829.2 | 525.57 | 96.83 Rank: 96/147 |
4147.20 Rank: 67/147 |
4.258 Rank: 97/147 |
0.45992 Rank: 100/147 |
0.55661 (±0.00296) Rank: 101/147 |
0.65664 (±0.00231) Rank: 101/147 |
In the multi-view track we reconstruct the scene with Structure-from-Motion (Colmap) with small sets of images. We show the results for one bag of 25 images (displaying: 10). Keypoints are drawn in blue if they are part of the model, and in red otherwise.
— british museum —

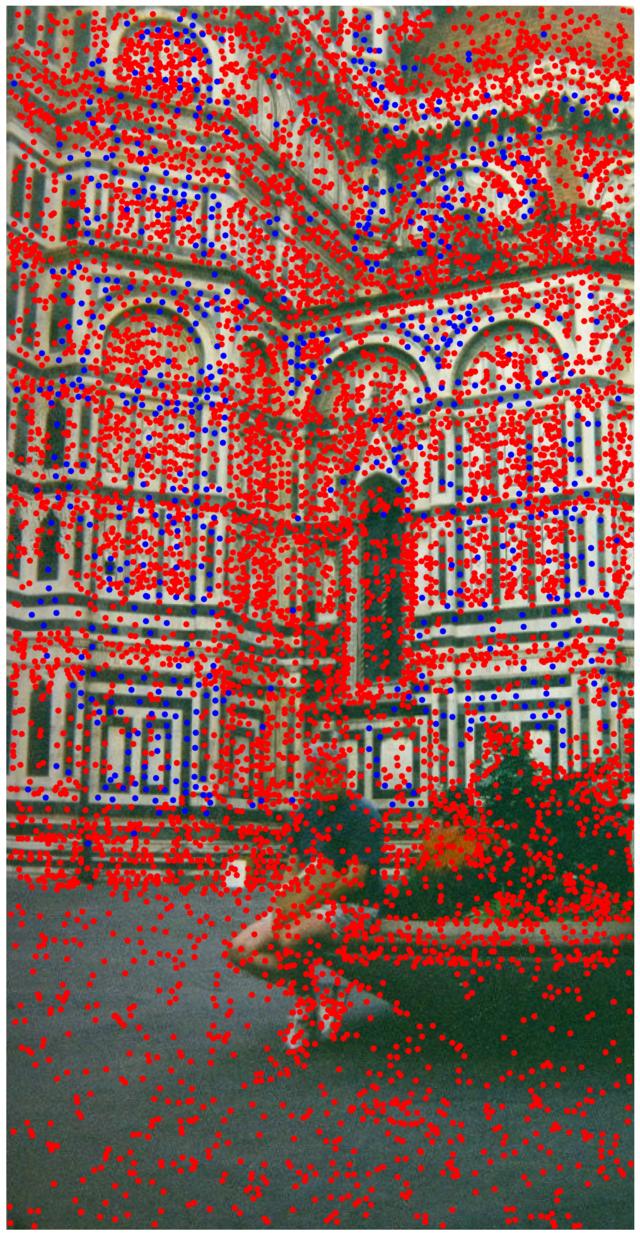

— florence cathedral side —
— lincoln memorial statue —

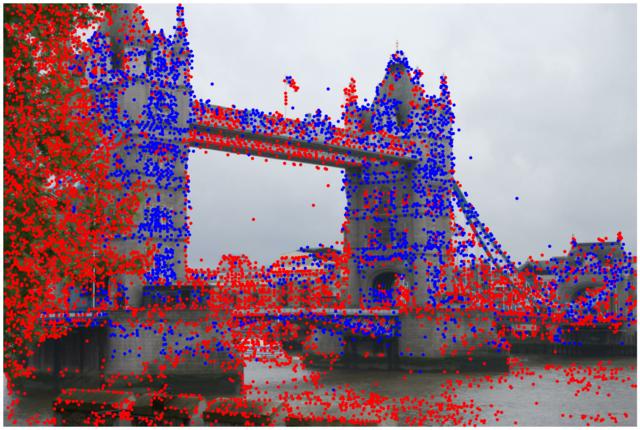

— london bridge —
— milan cathedral —

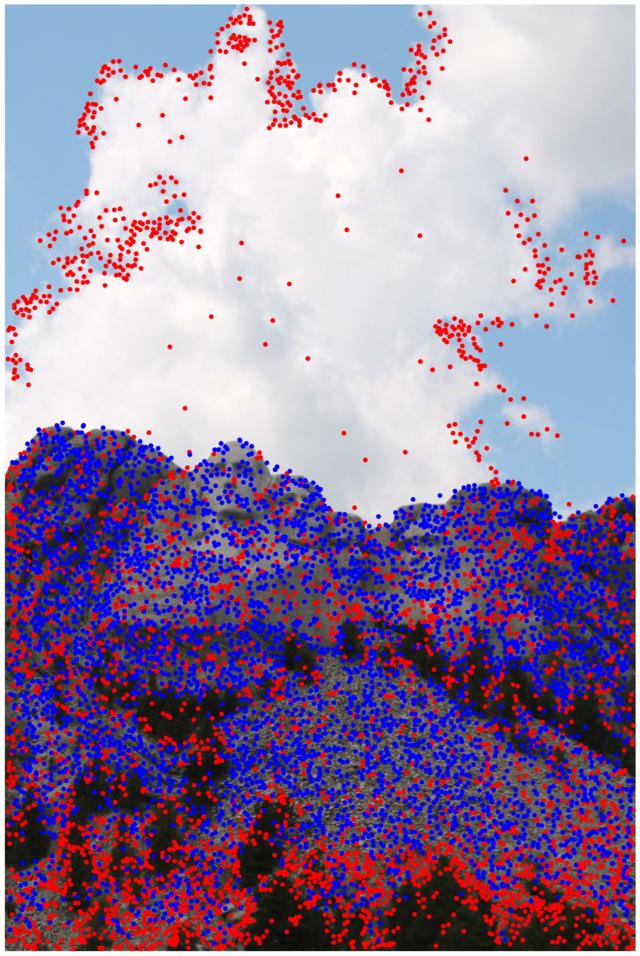

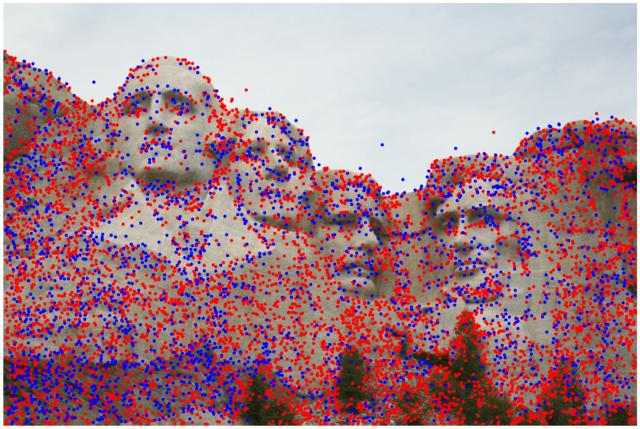

— mount rushmore —

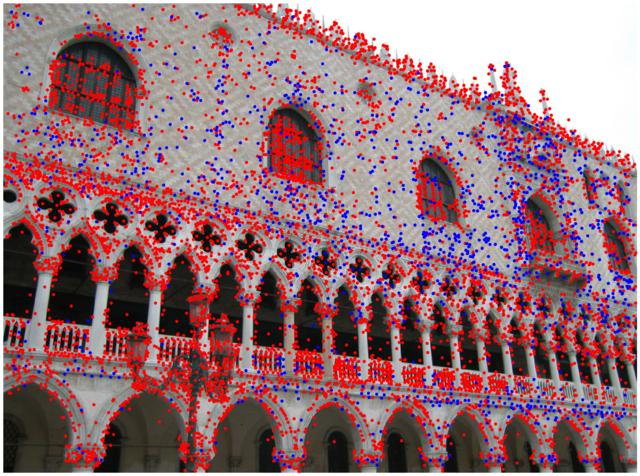

— piazza san marco —

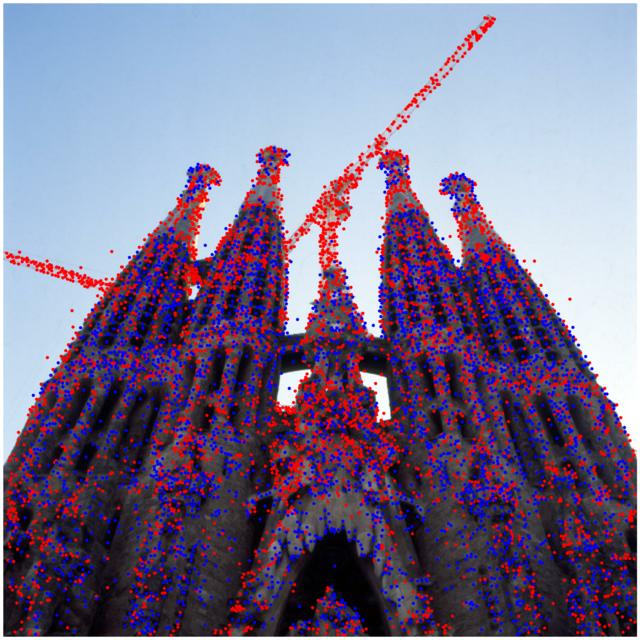

— sagrada familia —

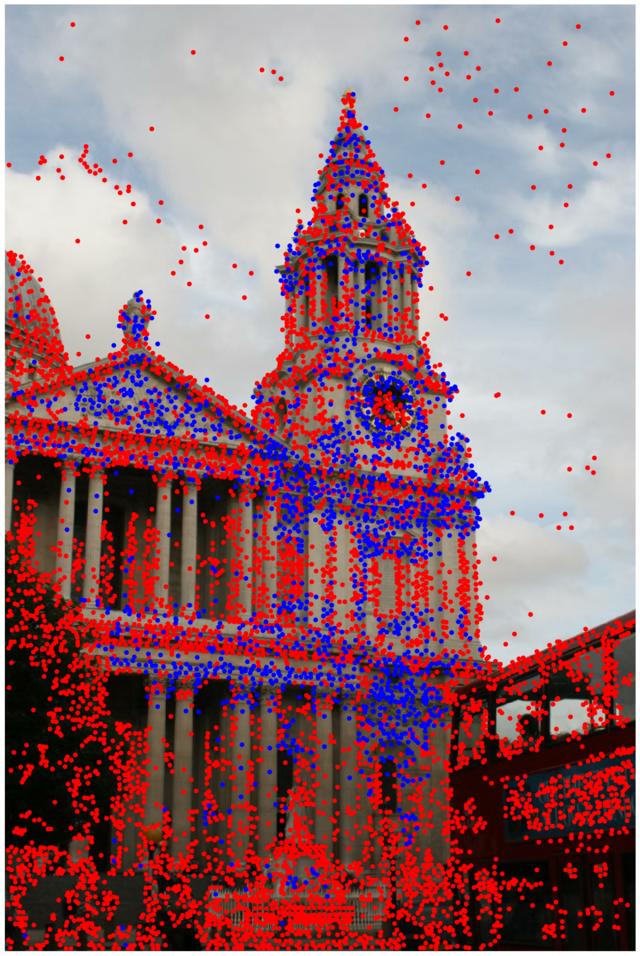

— saint paul's cathedral —
