Submission ID: 00082
LogPolar w/ MAGSAC
Processed: 20-04-22. Download link: sid-00082-logpolar-8k-both-magsac.json
This page ranks the submission against all others using the same number of keypoints, regardless of descriptor size. Please hover over table headers for descriptions on metrics and full scene names.
Metadata
- Authors: Challenge organizers (contact)
- Keypoint: sift8k
- Descriptor: logpolar96-fixed (128 float32: 512 bytes)
- Number of features: 8000
- Summary: LogPolar descriptors on DoG features (OpenCV), extracted with a low detection threshold to generate up to 8000 points. Using the built-in matcher: bidirectional filter with the both strategy. MAGSAC for stereo.
- Paper: https://arxiv.org/abs/1908.05547
- Website: https://github.com/cvlab-epfl/log-polar-descriptors
- Origin: Baseline
- Flags: is_baseline
Phototourism / Stereo track
mAA at 10 degrees: 0.49129 (±0.00011 over 3 run(s) / ±0.13557 over 9 scenes)
Rank (per category): 84 (of 147)
| Scene | Features | Matches (matcher) |
Matches (filter) |
Matches (final) |
Rep. @ 3 px. | MS @ 3 px. | mAA(5o) | mAA(10o) |
| bm | 7968.3 | 711.1 | 711.1 | 621.9 | 0.527 Rank: 49/147 |
0.933 Rank: 83/147 |
0.19084 (±0.00185) Rank: 81/147 |
0.31298 (±0.00338) Rank: 74/147 |
| fcs | 7873.6 | 656.1 | 656.1 | 561.5 | 0.443 Rank: 91/147 |
0.921 Rank: 89/147 |
0.57103 (±0.00335) Rank: 100/147 |
0.69610 (±0.00168) Rank: 97/147 |
| lms | 7770.9 | 520.8 | 520.8 | 428.4 | 0.468 Rank: 23/147 |
0.661 Rank: 113/147 |
0.46817 (±0.00123) Rank: 105/147 |
0.56578 (±0.00105) Rank: 109/147 |
| lb | 7952.8 | 473.6 | 473.6 | 370.0 | 0.474 Rank: 92/147 |
0.743 Rank: 88/147 |
0.41879 (±0.00185) Rank: 81/147 |
0.51920 (±0.00176) Rank: 75/147 |
| mc | 7823.8 | 665.7 | 665.7 | 567.1 | 0.524 Rank: 99/147 |
0.935 Rank: 106/147 |
0.35393 (±0.00185) Rank: 81/147 |
0.50586 (±0.00198) Rank: 96/147 |
| mr | 7790.8 | 528.0 | 528.0 | 479.4 | 0.457 Rank: 99/147 |
0.933 Rank: 112/147 |
0.28406 (±0.00378) Rank: 97/147 |
0.38601 (±0.00302) Rank: 100/147 |
| psm | 7807.3 | 327.6 | 327.6 | 263.5 | 0.385 Rank: 102/147 |
0.526 Rank: 107/147 |
0.14522 (±0.00148) Rank: 74/147 |
0.25828 (±0.00083) Rank: 75/147 |
| sf | 7893.6 | 722.0 | 722.0 | 642.3 | 0.479 Rank: 102/147 |
0.857 Rank: 104/147 |
0.47520 (±0.00426) Rank: 86/147 |
0.60839 (±0.00434) Rank: 88/147 |
| spc | 7868.9 | 649.9 | 649.9 | 533.2 | 0.487 Rank: 102/147 |
0.840 Rank: 96/147 |
0.41782 (±0.00149) Rank: 71/147 |
0.56902 (±0.00323) Rank: 72/147 |
| avg | 7861.1 | 583.9 | 583.9 | 496.4 | 0.472 Rank: 103/147 |
0.817 Rank: 109/147 |
0.36945 (±0.00015) Rank: 88/147 |
0.49129 (±0.00011) Rank: 84/147 |

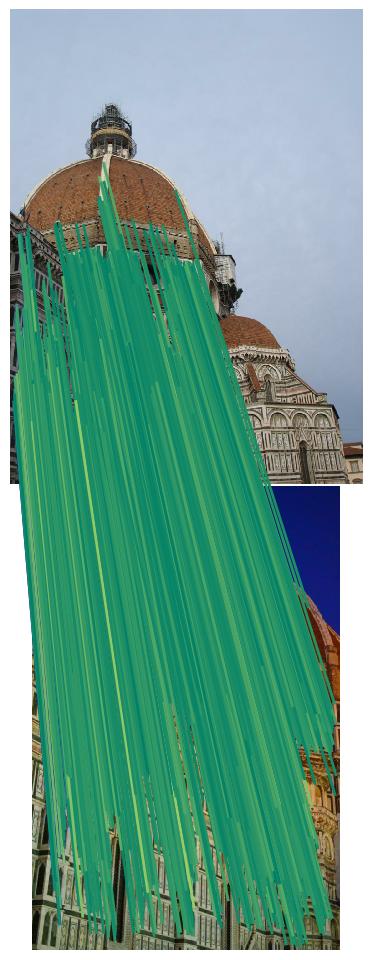

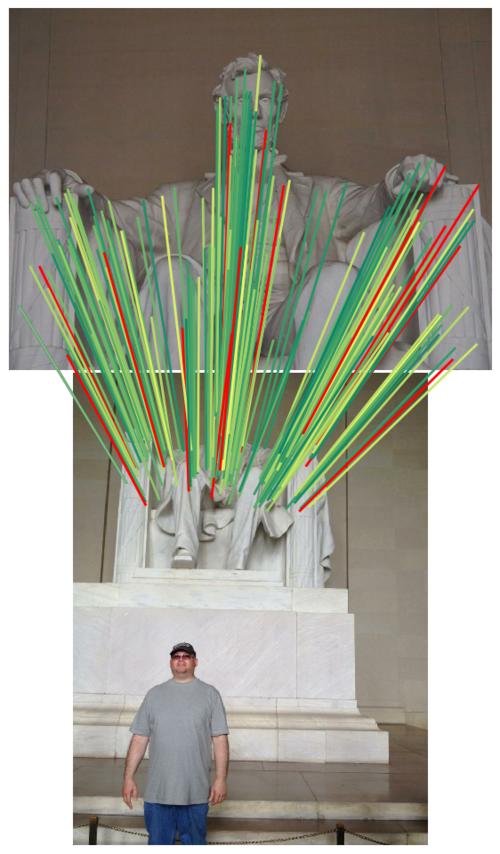

We show the inliers that survive the robust estimation loop (i.e. RANSAC), or those supplied with the submission if using custom matches, and use the depth estimates to determine whether they are correct. We draw matches above a 5-pixel error threshold in red, and those below are color-coded by their error, from 0 (green) to 5 pixels (yellow). Matches for which we do not have depth estimates are drawn in blue. Please note that the depth maps are estimates and may contain errors.
— british museum —
— florence cathedral side —
— lincoln memorial statue —
— london bridge —
— milan cathedral —
— mount rushmore —
— piazza san marco —
— sagrada familia —
— saint paul's cathedral —
Phototourism / Multiview track
mAA at 10 degrees: 0.69100 (±0.00154 over 3 run(s) / ±0.13836 over 9 scenes)
Rank (per category): 73 (of 147)
| Scene | Features | Matches (input) |
RegistrationRatio (%) | Number of Landmarks |
Track Length | ATE | mAA(50) | mAA(100) |
| bm | 7968.3 | 457.94 | 99.80 Rank: 54/147 |
3242.44 Rank: 51/147 |
5.046 Rank: 36/147 |
0.45731 Rank: 48/147 |
0.45884 (±0.00562) Rank: 56/147 |
0.61730 (±0.00622) Rank: 53/147 |
| fcs | 7873.6 | 445.50 | 97.60 Rank: 92/147 |
4562.71 Rank: 80/147 |
4.403 Rank: 79/147 |
0.26467 Rank: 92/147 |
0.72214 (±0.00616) Rank: 71/147 |
0.79496 (±0.00907) Rank: 58/147 |
| lms | 7770.9 | 350.40 | 98.16 Rank: 125/147 |
3753.16 Rank: 42/147 |
4.404 Rank: 86/147 |
0.28484 Rank: 60/147 |
0.81053 (±0.00651) Rank: 87/147 |
0.87325 (±0.00727) Rank: 76/147 |
| lb | 7952.8 | 399.25 | 98.43 Rank: 58/147 |
3283.96 Rank: 58/147 |
4.721 Rank: 54/147 |
0.47534 Rank: 28/147 |
0.66573 (±0.00621) Rank: 58/147 |
0.76404 (±0.00513) Rank: 57/147 |
| mc | 7823.8 | 451.89 | 99.19 Rank: 119/147 |
4385.20 Rank: 66/147 |
4.584 Rank: 79/147 |
0.39994 Rank: 63/147 |
0.48878 (±0.00512) Rank: 95/147 |
0.63857 (±0.00725) Rank: 95/147 |
| mr | 7790.8 | 400.10 | 93.10 Rank: 104/147 |
4420.71 Rank: 95/147 |
4.014 Rank: 102/147 |
0.48478 Rank: 46/147 |
0.43012 (±0.00441) Rank: 76/147 |
0.54526 (±0.00462) Rank: 72/147 |
| psm | 7807.3 | 150.78 | 85.41 Rank: 115/147 |
2513.01 Rank: 95/147 |
3.196 Rank: 90/147 |
0.69077 Rank: 56/147 |
0.34025 (±0.00876) Rank: 98/147 |
0.41568 (±0.00821) Rank: 100/147 |
| sf | 7893.6 | 529.93 | 97.06 Rank: 101/147 |
5646.75 Rank: 81/147 |
4.334 Rank: 82/147 |
0.32727 Rank: 71/147 |
0.70440 (±0.00403) Rank: 91/147 |
0.79068 (±0.00387) Rank: 91/147 |
| spc | 7868.9 | 411.53 | 98.43 Rank: 107/147 |
4519.37 Rank: 49/147 |
4.358 Rank: 56/147 |
0.47779 Rank: 69/147 |
0.67810 (±0.00567) Rank: 71/147 |
0.77926 (±0.00599) Rank: 74/147 |
| avg | 7861.1 | 399.70 | 96.35 Rank: 109/147 |
4036.37 Rank: 74/147 |
4.340 Rank: 77/147 |
0.42919 Rank: 66/147 |
0.58876 (±0.00162) Rank: 75/147 |
0.69100 (±0.00154) Rank: 73/147 |

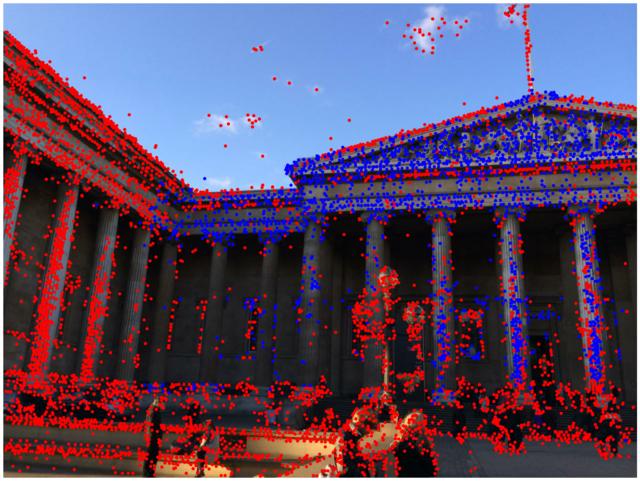

In the multi-view track we reconstruct the scene with Structure-from-Motion (Colmap) with small sets of images. We show the results for one bag of 25 images (displaying: 10). Keypoints are drawn in blue if they are part of the model, and in red otherwise.
— british museum —
— florence cathedral side —
— lincoln memorial statue —
— london bridge —
— milan cathedral —
— mount rushmore —
— piazza san marco —
— sagrada familia —
— saint paul's cathedral —
