CS322 Fall 1997
Assignment 5 -- Solution
Due: 1:30pm, Friday 10 October 1997.
In this question you will look at backtracking versus arc consistency
for solving CSP problems.
Consider a scheduling problem, where there are 5 activities to be
scheduled in 4 time slots. Lets represent the activities by the
variables A, B, C, D, and E, and suppose the domain of each
variable is {1,2,3,4} and the constraints are:
A>D, D>E, C \=A, C>E, C \=D, B>=A, B\=C, C\=D+1.
- [6 marks] Show how backtracking can be used to solve this problem. To do
this you should draw the search tree generated to find all answers.
Indicate clearly the valid schedule(s).
Here is a solution tree based on the variable ordering C,D,A,B,E.
Solution Tree
- [6 marks] Show how arc consistency can be used to solve this problem.
- Here is the initial constraint graph:
- The following table shows which elements of a domain are deleted at each step, and
which arc is responsible for removing the element:
|
Arc | Relation | Value(s) Removed |
|
<D,E> | D > E | D=1 |
|
<E,D> | D > E | E=4 |
|
<C,E> | C > E | C=1 |
|
<D,A> | A > D | D=4 |
|
<A,D> | A > D | A=1 & A=2 |
|
<B,A> | B >=A | B=1 & B=2 |
|
<E,D> | D > E | E=3 |
|
|

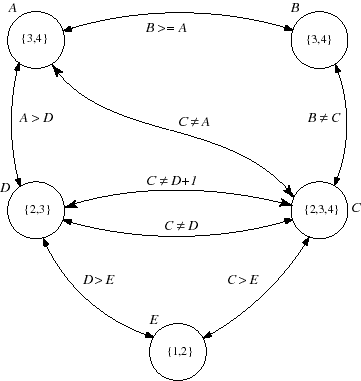

At this stage
arc consistency has
stopped. Here is the arc-constraint graph:
Note that, if you had one arc between C and D labelled with C
\=D+1 &C\=D, then C=3 can be removed by considering the
arc <C,D>. If you have two arcs, C=3 cannot be removed by
arc consistency.
- Show how splitting a domain can be used to solve this problem.
Lets split the domain of D. There are two cases, D=2 and D=3.
- Case 1.
- Lets put D=2 into the constraint net (i.e., prune
D=3 from the constraint net) and run are consistency again.
|
Arc | Relation | Value(s) Removed |
|
<E,D> | D > E | E=2 |
|
<C,D> | C \=D | C=2 |
|
<C,D> | C \=D+1 | C=3 |
|
<A,C> | C \=A | A=4 |
|
<B,C> | B \=C | B=4
|
Here is
the resulting constraint net.

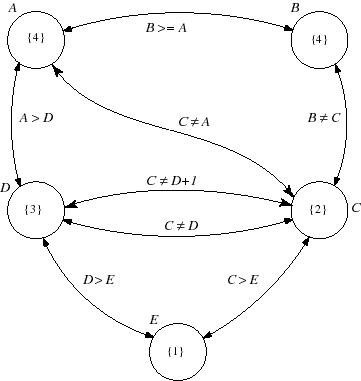

- Case 2.
- Lets put D=3 into the constraint net (i.e., prune
D=2 from the arc-consistent constraint net) and run are consistency again. Here is
the resulting constraint net.
These two constraint nets correspond to the only two solutions.
In this question you will implement the graph searcher for finding the
shortest video presentations for the previous two assigments.
For example, given the segment database (from Assignment 3),
% segment(SegId,Time,Topics) is true if segment SegId takes time Time
% and covers the topics in Topics.
segment(seg0,10,[welcome]).
segment(seg1,30,[skiing,views]).
segment(seg2,50,[welcome,computational_intelligence,robots]).
segment(seg3,40,[graphics,dragons]).
segment(seg4,50,[skiing,robots]).
you also need to assume that you have a list of all segments:
% all_segments(L) is true if L is the list of all segments.
all_segments([seg0,seg1,seg2,seg3,seg4]).
Suppose that a node is represented as vp(To_Cover,Segs) where Segs is a list of segments that must be in the presentation,
and To_Cover is a list of topics that also must be covered, such
that none of the segments in Segs covers any of the topics in
To_Cover.
Write the neighbors relation, so that
ask neighbours(vp([welcome,robots],[]),Neighs).
has one answer (perhaps in the other order):
Answer: neighbours(vp([welcome,robots],[]),
[vp([],[seg2]),vp([robots],[seg0])]).
You also need to define the cost predicate, where the cost of an arc
is the time of the segment added, and an is_goal predicate.
Show how this can be used with the
hsearch
program.
Solution
The following query should give the shortest presentation:
ask hsearch(shortest,[node(vp([welcome,skiing,robots],[]),[],0,0)],P).
Show that it works. (Note that asking "how" will show the steps of
the search).
