Description of demo_binaryclass_bagging.m

Demonstrates bootrap aggregation of stump and logistic regression classifiers on datasets with challenging class structure

clear all
close all
generateData_circular

usage of stump binary classification (circular dataset)

options_st = [];
model_st = ml_binaryclass_stump(Xtrain, ytrain, options_st);
yhat_st = model_st.predict(model_st, Xtest);
testError_st = mean(yhat_st ~= ytest);
fprintf('Averaged misclassification test error with %s is: %.3f\n', ...
        model_st.name, testError_st);
figure;
plot2DClassifier(Xtrain, ytrain, model_st);

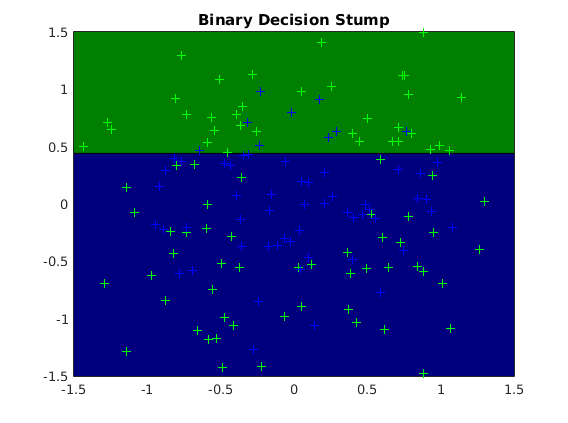

Averaged misclassification test error with Binary Decision Stump is: 0.436

usage of stump binary classification with bagging (circular dataset)

options_bg.nModels = 20;
options_bg.subModel = @ml_binaryclass_stump;
model_bg = ml_binaryclass_bagging(Xtrain, ytrain, options_bg);
yhat_bg = model_bg.predict(model_bg, Xtest);
testError_bg = mean(yhat_bg ~= ytest);
fprintf('Averaged misclassification test error with %s is: %.3f\n', ...
        model_bg.name, testError_bg)
figure;
plot2DClassifier(Xtrain, ytrain, model_bg);
hold on;
for k = 1:length(model_bg.trainModels);
    plot2DLine(model_bg.trainModels{k});
    alpha(0)
end
plot2DClassifier_red(Xtrain, ytrain, model_bg);

generateData_robustness

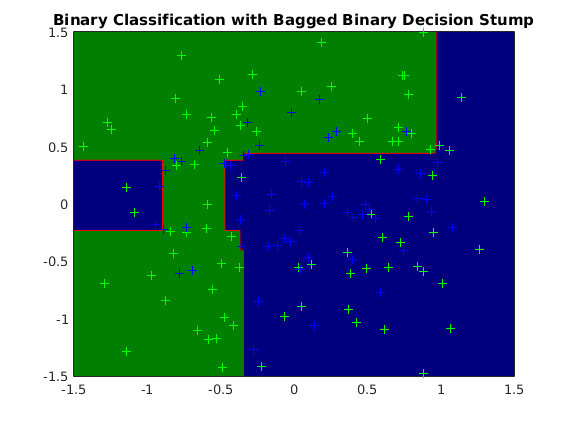

Averaged misclassification test error with Binary Classification with Bagged Binary Decision Stump is: 0.351

usage of logistic regression (robustness data)

options_lg = [];
options_lg.addBias = 1;
model_lg = ml_binaryclass_logistic(Xtrain, ytrain, options_lg);
yhat_lg = model_lg.predict(model_lg, Xtest);
testError_lg = mean(yhat_lg ~= ytest);
fprintf('Averaged misclassification test error with %s is: %.3f\n', ...
        model_lg.name, testError_lg);
figure;
plot2DClassifier(Xtrain, ytrain, model_lg);

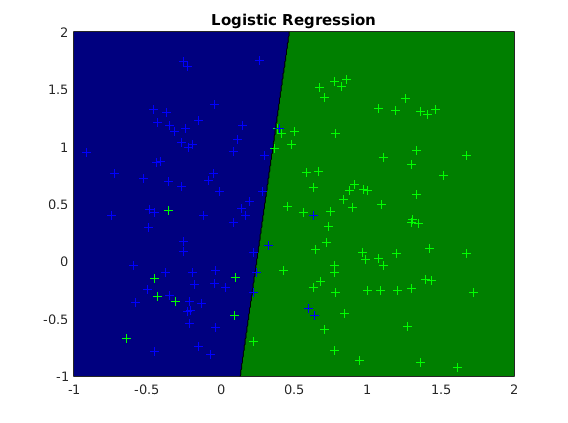

Averaged misclassification test error with Logistic Regression is: 0.120

usage of logistic regression with bagging (robustness data)

options_bg = [];
options_bg.nModels = 20;
options_bg.subModel = @ml_binaryclass_logistic;
options_bg.subOptions.addBias = 1;
model_bg = ml_binaryclass_bagging(Xtrain, ytrain, options_bg);
yhat_bg = model_bg.predict(model_bg, Xtest);
testError_bg = mean(yhat_bg ~= ytest);
fprintf('Averaged misclassification test error with %s is: %.3f\n', ...
        model_bg.name, testError_bg)
figure;
plot2DClassifier(Xtrain, ytrain, model_bg);
hold on;
for k = 1:length(model_bg.trainModels);
    plot2DLine(model_bg.trainModels{k});
    alpha(0)
end
plot2DClassifier_red(Xtrain, ytrain, model_bg);

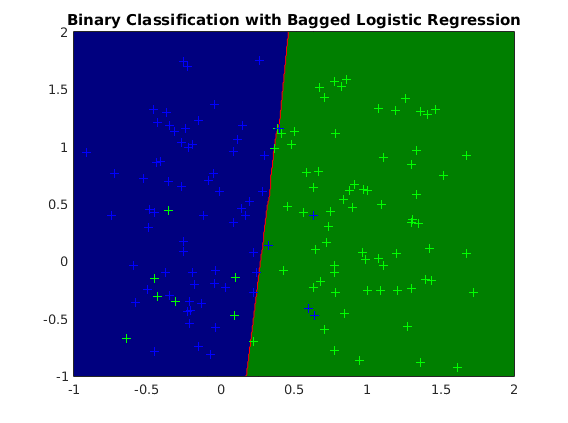

Averaged misclassification test error with Binary Classification with Bagged Logistic Regression is: 0.133
