CPSC 111 2009/10 Winter Term 2, Assignment 3: Beasts

Your mission is to control the beasts by implementing three interfaces:

• The IBeastBrain interface requires you to create classes that control how Beasts behave by choosing a mood and direction. A BeastMood is described by intensity and grooviness. Intensity ranges from 0 to 100, and grooviness ranges from -100 (sad) to +100 (happy). A direction is specified by an angle in degrees or radians.
  For instance, a behavior could be to move in the direction of a sine wave, with intensity depending on whether the Beast was moving upwards or downwards. Another behavior would be moving perpendicular to the pack leader, with high grooviness if you're on the left half of the screen and low grooviness if you're on the right.
• The IPackFinder interface requires you to create classes that return a single leader Beast and an array of Beasts that are members of the pack. The behavior of a BeastBrain may depend on some computation involving its leader and/or pack.
  For instance, a pack could be all of the groovy beasts, or all the nearby beasts, or all the beasts travelling in a certain direction that are not groovy.
• The IBeastProvider interface requires you to make a class that provides an array of Beast objects.

• IBeastBrain:
  • SpinnyBrain directs the beast to spin around in circles, and leaves the mood unchanged. The pack is ignored.

  • FollowerBrain directs the beast towards the pack leader, and its mood is the same grooviness and half the intensity of its leader.

  • GroupieBrain directs the beast toward the pack leader, and its mood becomes more groovy the closer it gets, reaching maximum grooviness when it is 100 pixels or closer to the leader. Its intensity decreases with the number of other Beasts in its pack, reaching 0 when there are 5 or more others.

  • FlockBrain directs the beast towards the center of its pack. Its mood becomes groovier when it is close to other pack members, with an intensity that depends on the number of Beasts in the pack. If there are 10 or more pack members, it reaches maximum intensity. If there are no other Beasts in its pack, it wanders aimlessly by picking a random direction and its mood is neutral (intensity and grooviness both set to the middle of the possible range).

  • YourBrain is up to you! Design something interesting and fun, and implement it. Make sure to include comments explaining the desired behavior of your brain, so that we can understand whether you've succeeded. Feel free to post English descriptions of the behaviors of YourBrain to WebCT, but do not post either code or English descriptions of how to implement the design.

• IPackFinder:
  • GlumPackFinder returns the pack of all the Beasts with grooviness below 0. The most ungroovy Beast in the pack is the leader.

  • NearbyIntensePackFinder returns the pack of all Beasts within 200 pixels. The leader is the most intense Beast in the pack.

  • CongaPackFinder returns the pack of all beasts provided by the IBeastProvider. However, it returns a different pack leader for each beast: it returns the next beast in the array (wrapping around to the 0th beast for the leader of the last beast). If the beast passed to getLeader is not in the array, getLeader should return null.

  • YourPackFinder is up to you! Design something interesting and fun, and implement it. Make sure to include comments explaining the desired behavior of your pack, so that we can understand whether you've succeeded. Feel free to post English descriptions of the behaviors of YourPackFinder to WebCT, but do not post either code or English descriptions of how to implement the design.

• IBeastProvider:
  • You will need to create setup classes to test your BeastBrains and PackFinders. To call these different setup classes, you will need to change the setup method of BeastSimulationProgram. You must submit appropriate IBeastProviders to test all of the code that you write. Feel free to post your IBeastProviders on WebCT, to share ideas on what's fun to make.

  • BeastManager is an example of a complex IBeastProvider that keeps track of all the Beasts so that they can be drawn by the main driver class, BeastSimulationProgram. Note that you do not need to change this class at all, and your IBeastProviders are likely to be much simpler than this one.

If those descriptions above sound vague, it's because they are! For instance, how tight should the SpinnyBeast's circles be? It's up to you. As long as your beasts look right in the way they behave, and your documentation shows how you've fulfilled the specification, you'll get full marks. So make sure you comment your code carefully to justify your choices.

Be careful of what assumptions you make when writing beast brains and pack finders. For example, remember that you may be dealing with an empty pack containing no beasts, or that there might be no leader. Your code should be robust and do something reasonable in these cases, not crash! Again, document your design choices.

As usual, some bonus points are available for going above and beyond the call of duty, by implementing more or particularly impressive brains and packs.

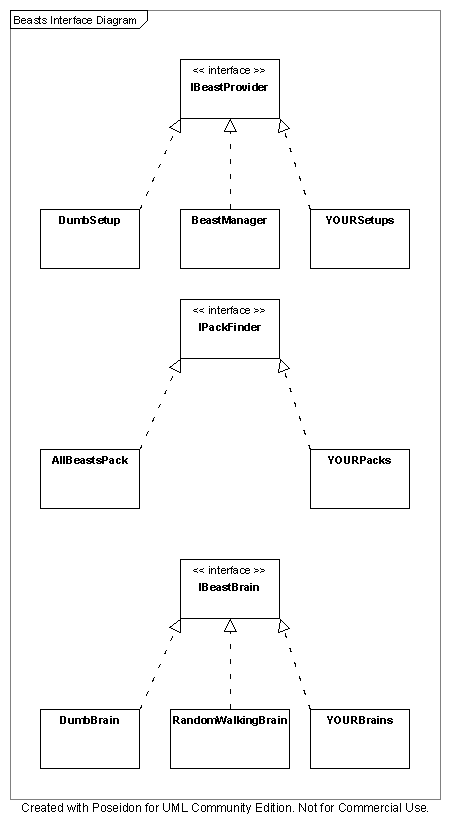

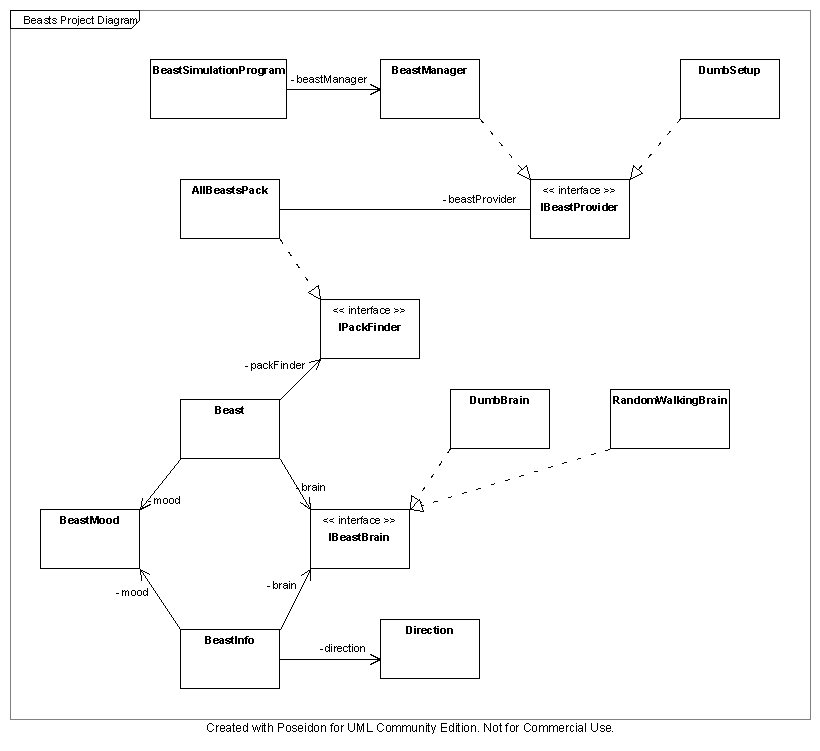

The full framework is:

All code that you add must be clear, easily readable, and documented with JavaDoc. Note that it is unlikely that the comments provided for an interface's methods are sufficient documentation for the methods of a class that implements it, so don't just copy them! Any significant or potentially confusing parts of methods should be documented; code that is reused in different parts of a class should be abstracted into a method; and methods that become overly long or complex should be broken down into simpler methods. Remember to explain in your comments all design decisions you made!

Includes these source files (no need to download separately):
BeastSimulationProgram.java, AllBeastsPack.java, Beast.java, BeastInfo.java, BeastManager.java, BeastMood.java, Direction.java, DumbBrain.java, DumbSetup.java, IBeastBrain.java, IBeastProvider.java, IPackFinder.java, RandomWalkingBrain.java

API documentation for Beast package:

• BeastSimulationProgram (driver class)
• AllBeastsPack
• Beast
• BeastInfo
• BeastManager
• BeastMood
• Direction
• DumbBrain
• DumbSetup
• IBeastBrain
• IBeastProvider
• IPackFinder
• RandomWalkingBrain

Now, your project contains all the necessary code, but the acm.jar file is not on your classpath. Right-click on the Beasts project and select Properties. In the menu on the left, select Java Build Path. Select the Libraries tab on the right. Click Add Jars.... You should see Beasts in the dialog box that pops up. When you double-click on it, you should see the jar file acm.jar. Select it and hit OK.

You should now be ready to solve the assignment in Eclipse.

Setting up on the command line: Start by downloading the file Beasts.zip to whatever directory on your computer you'd like to work from. Next, unzip the file to that directory. (The Home Suite Home CD and the lab computers have FilZip for unzipping files; you may have another application.)

To compile from the directory where you installed your code, use:

javac -classpath .;acm.jar *.java

To run from the directory where you installed your code, use:

java -classpath .;acm.jar BeastSimulatorProgram

• Start by implementing SpinnyBrain, using the DumbBrain class as a base. This is the simplest Brain to create, since it does not take the pack into account at all. You now have a new class that implements the IBeastBrain interface!
• Then implement a MySetup in order to test the SpinnyBrain, using the DumbSetup as a base. Change the setup method of the BeastSimulationProgram class to call MySetup instead of DumbSetup. You now have a new class that implements the IBeastProvider interface.
• Next, implement the FollowerBrain.
• Adapt your MySetup tester class to add some FollowerBrains to the set of beasts in your world, to test this class.
• Implement your GroupieBrain, building on what you did for the FollowerBrain.
• Adapt your tester/setup class to test GroupieBrain beasts as well.
• Next, implement FlockBrain. Make sure to test with flocks of different size, to make sure that the specified behavior that depends on flocks size is correct.
• Adapt your tester class to include FlockBrain beasts. Again, be sure to test with flocks of different sizes, including size 0. You may want to create multiple different tester classes, instead of continuing to adapt just one.
• Now, try implementing the GlumPackFinder, the simplest class that should implement the IPackFinder interface.
• Adapt your tester class (or create a new one) to test GlumPackFinder. You will need to consider what kind of Beasts are best to use for testing the packfinder. You might want to choose specific values for grooviness rather than relying on random ones, to make testing easier.
• Now implement the NearbyIntensePackFinder.
• Adapt your tester class (or create a new one) to test this new packfinder. Again, setting specific values, for example initial location and intensity for your beasts, will help you test things more quickly.
• Implement the CongaPackFinder. It's a good idea to save this one for last, because it is the most complex one.
• Create (or adapt) a tester class to test this packfinder.
• Now that you have experience with Brains and PackFinders, come up with an interesting specification for YourBrain and YourPackFinder.
• Implement YourBrain, and YourPackFinder.
• Create setup/tester classes to test these two final classes.

1. Describe YourBrain and YourPackFinder. What nifty things can they do?
2. Now that you know about inheritance, how could you have used inheritance in this project to make your program easier to write or more powerful.
3. If Java didn't have polymorphism at all, how would you have done this project? Are interfaces and inheritance worth the complexity they add to the language?
4. OPTIONAL: What was especially interesting or frustrating about this part of the assignment? What could we have done to make it better for you?

• Source Header: Please be sure to include the following comment statement at the top of each source file that you write in this assignment, plus your README.txt file:

  /*
    Authors:
    UNIX login IDs:
    Student numbers:
    Date:

    By submitting this file, we acknowledge that the persons whose names
    appear above are the only authors of this code except as acknowledged in
    the code below.
  */


• What To Submit:
  • the source files for all your new classes that implement the IBeastBrain, IPackFinder, and IBeastProvider interfaces.
  • the source file for the BeastSimulatorProgram.java file
  • the answers to the reflection questions, in the text file README.txt. README.txt should also contain any other comments you have on your submission (notes about extra files, extensions you wrote, known bugs in the code, etc.)

• Electronic Submission:
  • Zip up the files listed above into a single file, assign3.zip.
    • To do this, create a directory called assign3Handin and copy your two files to this directory. If you are in the lab, you can zip up your files by selecting them and then click one of the selected files with the right mouse button. Choose 7-zip from the pop-up menu and then select Add to archive... A dialog window will pop up. Set the Archive name to assign3.zip. Change the Archive format from 7z to Zip and then click OK. You should see a new file in your directory named assign3.zip.

      If you are using Windows Vista and have not installed any additional file compression programs (like WinZip), you can zip up your files be selecting them and clicking one of them with the right mouse button. Choose Send to and then select Compressed (zipped) Folder. A zip file will be created in the same directory containing the selected files. Note that you should change the name of the zipped file to assign3.zip.

  • Submit the zip file to our electronic handin box.
    • Open up a web browser and point it to:
      http://www.cs.ubc.ca/ugrad/facilities/windows/handin.shtml
    • The first time you use handin, you will have to install a security certificate on your machine (instructions will be provided on-screen) and then log in using your computer science undergraduate account ID and password.

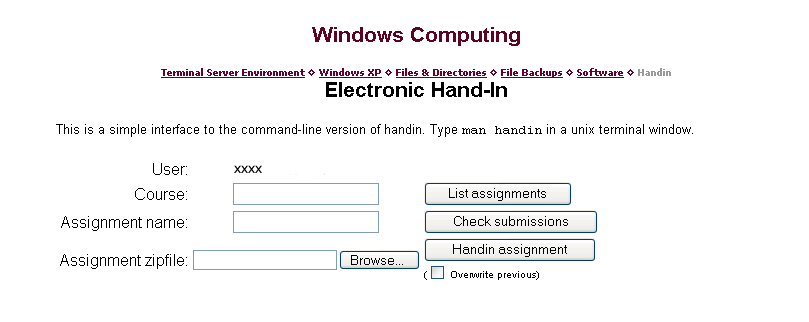

    • You will then see a page that looks like:



      • Enter cs111 for the Course
      • Enter assign3 for the Assignment name
      • Click the Browse button and select the zip file assign3.zip that contains your assignment files.
      • Click the Handin assignment button
    • Important: now check that your work has been submitted correctly by choosing the Check submissions button. Note that you have to specify the course and assignment name as you did when you first handed in your assignment. You will see a list of the files that were contained in your zip file. If any files are missing, repeat the process.
    • You can overwrite your submission any time before the due date by clicking the Overwrite previous box before you click the Handin assignment button.
    • If you want to check an assignment due date, select the List assignments button. Note that you must specify the Course (cs111).

• Working in Teams: You may work with at most one other person. That person must also be enrolled in CPSC 111 this term. If you are working with a partner, the two of you must submit only one assignment. Keep in mind that when you work in pairs, each of you must understand the work that you submit.

• Late Penalty: The following late penalties will be applied if your work is not submitted on time:
  • 10% deduction if your work is up to 24 hours late
  • 30% deduction if your work is up to 48 hours late
  • 100% deduction if your work is more than 48 hours late
  Please note that weekends and holidays are counted!

• A Word of Advice: The demand for our labs may be extremely high on the due date of an assignment. To avoid last minute headaches, start early and plan to submit your assignment at least one day before it is due!
