Metadata Repository

Motivation

• If you have hundreds or thousands of webs on a TWiki site, web metadata stored in a data repository is useful.
  • It can make things more efficient. For example, you can get the list of webs without traversing a directory hierarchy.
  • It can make things otherwise impossible possible. For example, you can have metadata of a web which is not suitable to put on WebPreferences.
• If you run a federation of TWiki sites (detail later), each site needs to have site metadata of the others.
• Provided that you need to handle both site and web metadata, a uniform manner to handle those is handy.
• There are cases where other kinds of metadata needs to be handled.

Basics

We call the metadata repository described on this topic "Mdrepo" (em dee repo).

It's optional

Mdrepo being for a large site having hundreds or thousands of webs, its use is optional. It's activated only if the site owner explicitly turns it on.

Structure

• Mdrepo houses data tables such as the site metadata table and the web metadata table.
• A table consists of records which have unique names. A web metadata record is named by the web name.
• A record consists of fields, each of which consists of a field name and a value. A field name is unique in a record and a field value is a string.

Only for top level webs

For practicality, web metadata is only for top level webs. More accurately, a subweb has the same web metadata as its parent.

The reason is that site administration gets complicated if subwebs can have different web metadata.

Examples

Here's how a metadata repository would be used by federated TWiki sites.

Federation of sites

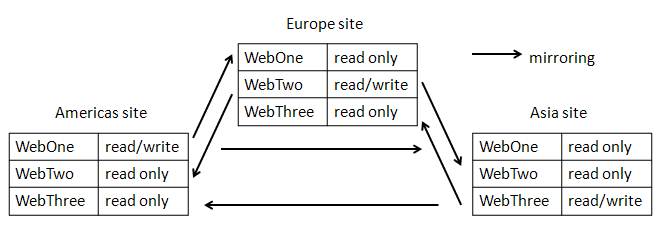

Let's assume the following federation of TWiki sites.

• It consists of three TWiki sites - in Americas, Europe, and Asia.
• All sites in the federation have the same set of webs.
• Each web in the federation has one master site where update happens. This means that a web is read-only on a non master site.
  • Let's say WebOne's master is Americas site, WebTwo's Europe, and WebThree's Asia.
  • Each site mirrors sites whose master is not local periodically.
    • Americas site mirrors WebTwo and WebThree.
    • Europe site mirrors WebOne and WebThree.
    • Asia site mirrors WebOne and WebTwo.
    • Mirroring is basically copying files using the rsync command.

Web admins

If there are many webs, it may not be easy to get hold of people responsible for a web. So it's handy if all webs have their admins clearly defined. Given that, let's assume we define admins for each web and store as a part of web metadata.

Site metadata and web metadata fields

The following fields are needed in a site metadata record to implement the federation shown above.

• server
• data directory path on the server
• pub directory path on the server

And the site metadata table is as follows.

Name	Server	DataDir	PubDir
am	strawman	/d/twiki/data	/d/twiki/pub
eu	woodenman	/var/twiki/data	/var/twiki/pub
as	tinman	/share/twiki/data	/share/twiki/pub

And the following fields in the web metadata.

• admin group
• master site

The web metadata table is as follows.

Name	Admin	Master
WebOne	GodelGroup	am
WebTwo	EscherGroup	eu
WebThree	BachGroup	as

How to get and put data - overview

• You can retrieve data from the metadata repository using %MDREPO{...}%.
• You can put data by the mdrepo script. It works from browser as well as command line.

Using these, you can construct a web interface to display and manipulate the webs table as follows.

Initial Letters:

Name	Admin	Master	Load Row
		ameuas
WebOne	GodelGroup	am	do
WebThree	BachGroup	as	do
WebTwo	EscherGroup	eu	do

mdrepo script from command line

Go to the bin directory then you can use the mdrepo script in the following format: ./mdrepo COMMAND ARGUMENT ... Arguments depend on the command.

mdrepo show TABLE RECORD_ID

Shows the specified record of the specified table.

Example:

$ ./mdrepo show sites am
am
    datadir=/d/twiki/data
    pubdir=/d/twiki/pub
    server=strawman

mdrepo list TABLE

Shows all the records of the specified table.

Example:

$ ./mdrepo list sites
am
    datadir=/d/twiki/data
    pubdir=/d/twiki/pub
    server=strawman

as
    datadir=/share/twiki/data
    pubdir=/share/twiki/pub
    server=tinman

eu
    datadir=/var/twiki/data
    pubdir=/var/twiki/pub
    server=woodenman

mdrepo add TABLE RECORD_ID FIELD_NAME=VALUE ...

Adds a new record. It returns nothing. If the specified record already exists, it complains.

Example:

$ ./mdrepo add webs WebFour admin=HofstadterGroup master=am

mdrepo updt TABLE RECORD_ID FIELD_NAME=VALUE ...

Update an existing record. It returns nothing. If the specified record does not exist, it complains.

Example:

$ ./mdrepo updt webs WebFour admin=GardnerGroup master=am

mdrepo del TABLE RECORD_ID

Deletes an existing record. It returns nothing. If the specified record does not exist, it complains.

Example:

$ ./mdrepo del webs WebFour admin=GardnerGroup master=am

mdrep load TABLE FILE

Loads records to the specified table from the specified file. The file content is in the same format as the list command's output. Nonexistent records are created. Existing records are updated.

Example:

$ ./mdrepo load /var/tmp/temp-webs

mdrepo rset TABLE

Makes the specified table empty. It returns nothing.

Example:

$ ./mdrepo rset sites

mdrepo script from browser

Restrictions

Compared with command line use, using it from browser is restricted for risk mitigation.

• Not all tables are subject to manipulation from brower. Only tables permitted by Configuration.
  • The sites tabe is rarely updated hence allowing its updat from browser does not increase convenience significantly. Still, if it's modified in a wrong manner, the damage can be huge. So making it updatable from browser is not recommended.
• Only the following commands can be issued from browser: add, updt, del
  • show and list commands are not needed because %MDREPO{...}% does those jobs.
  • load and rset are too dangerous.

When the mdrepo script is used from browser, %ALLOWROOTCHANGE% is examined. If it allows you, the operation is executed.

If %ALLOWROOTCHANGE% does not allow you, TWiki checks if the user mapping handler has the mdrepoOpAllowed() method. If the method exists, it's called in the following manner to check if the operation is permitted.

$mapping->mdrepoOpAllowed($cUID, $cmd, $table, $recId, \%rec);

Here's how mdrepoOpAllow() is supposed to behave.

• If the operation is allowed, the method returns "" (a null string), in which case the the operation is executed
• Otherwise, it returns the reason of not allowing, in which case, the operation is not executed

Read lib/TWiki/UI/MdrepoUI.pm about how exactly it's called and its result is used.

By providing mdrepoOpAllowed(), you can make metadata creation/update/deletion self-service to some extent. But for mdrepoOpAllowed(), all metadata manipulation requires TWikiAdminGroup members' intervention.

URL parameters

mdrepo script checks

• if the _add parameter is true (a string other than "0" or "" (zero length string)
• otherwise checks if the _updt parameter is true
• otherwise checks if _del is true

The command is determined this way.

The table and the record ID are specified by the _table and _recid parameters.

Field values are specified by parameters of the =__FIELD_NAME format.

For example, submitting the following form has the same effect as the command line shown further below.

<form action="%SCRIPTURL%/mdrepo" method="post">
<input type="hidden" name="_add" value="add"/>
<input type="hidden" name="_table" value="webs"/>
<input type="hidden" name="_recid" value="WebFour"/>
<input type="hidden" name="__admin" value="GardnerGroup"/>
<input type="hidden" name="__master" value="am"/>
<input type="submit"/>

$ ./mdrepo add webs WebFour admin=GardnerGroup master=am

Output

By default, the script's output is in the text/plain MIME type. If the command succeeds, it returns nothing. When something goes wrong, an error message is returned.

If redirectto URL parameter is provided, the script returns HTTP redirect to the specified URL. If the redirectto parameter contains %RESULT%, it's replaced by the message to be shown when redirectto is not specified.

Record IDs and field names

So far, only metadata tables for sites and webs are discussed. TWiki core uses only those two tables. But the metadata repository can house more tables.

For sites and webs tables, word characters (letters, numbers, and underscores(_)) are enough for record IDs. So by default, record IDs are restricted to those characters to avoid confusion and unnecessary complication. As described in the next section, you can specify a regular expression of valid record IDs. You may need to specify it if you use other tables than sites and webs.

Similarly, field names are restricted. By default, field names are restricted to word characters. You can specify a regular expression of valid field names if needed.

Configuration

To turn on the metadata repository, you need to have the following three settings.

$TWiki::cfg{Mdrepo}{Dir} = '/var/twiki/mdrepo';
$TWiki::cfg{Mdrepo}{Tables} = [qw(sites webs:b)];

$TWiki::cfg{Mdrepo}{Dir}

Specifies a path to a directory where the files containing metadata are located.

$TWiki::cfg{Mdrepo}{Tables}

Specifies the names of the tables used. A table name may be followed by a colon and options. "b" is currently the only option recognized, which means the table can be updated from browser.

By the following setting, each web required to have its metadata record.

$TWiki::cfg{Mdrepo}{WebRecordRequired} = 1;

For a large site having thousands of webs, this is handy for site management. Specifically this brings the following behaviors.

• A web not having a web metadata record regarded as nonexistent. Existence of a directory under $TWiki::cfg{DataDir} isn't enough.
• A web creation by ManagingWebs is rejected if the corresponding web metadata is not present. Similarly, a web cannot be renamed to a web whose top level web doesn't have its web metadata record.
• %WEBLIST{...}% gets faster referring to web metadata rather than traversing a directory hiearchy. For practicality, only top level webs are listed except with the current web -- the current web's ancestors and decendants are listed.

As mentioned in the previous section, you can customize regular expressions of valid record IDs and field names as follows.

$TWiki::cfg{Mdrepo}{RecordIDRe} = '\\w[-.:\\w]*';
$TWiki::cfg{Mdrepo}{FieldNameRe} = '\\w[-\\w]*';

How data is stored

A table's data is stored in the file whose name is the table name followed by ".sereal". For example, the "webs" table is stored in "webs.sereal". Those files are under the directory specified by $TWiki::cfg{Mdrepo}{Dir}. As suggested by the ".sereal" extension, table data is serialized with Sereal.

Utilities

tools/mdrepo_dumptbl

Usage: cd bin; ../tools/mdrepo_dumptbl TABLE_NAME

This shows the Data::Dumper dump of the specified table. It is similar to run =./mdrepo list TABLE_NAME in the bin directory, but it involves with less processing.

tools/mdrepo_db2sereal

Usage: cd bin; ../tools/mdrepo_db2sereal [-force] [-verbose] [table ...]

This converts table files using the combination of DB_File and Storeable into Sereal.

You can specify tables to convert. Otherwiese, all the tables listed on $TWiki::cfg{Mdrepo}{Tables} are converted.

If a Sereal file exists and is newer than the corresponding file in DB_File, the conversion doesn't take place. -force option causes the conversion regardless.

Please read #Transition_to_Sereal about the transition to Sereal.

Audit trail

When the mdrepo script is used either from command line or browser, if the command is either add, updt, del, or rset, it's recorded on the log file in the same manner as other scripts. Specifically, the activity is put on the 5th column.

Command	5th column format
add	add TABLE RECORD_ID FIELD_NAME=VALUE ...
updt	cur TABLE RECORD_ID FIELD_NAME=VALUE ... updt TABLE RECORD_ID FIELD_NAME=VALUE ...
del	cur TABLE RECORD_ID FIELD_NAME=VALUE ... del TABLE RECORD_ID
rset	cur TABLE RECORD_ID FIELD_NAME=VALUE ... cur TABLE RECORD_ID FIELD_NAME=VALUE ... ... rset TABLE

As the table above suggests, updt, del, and rset commands put multiple log entries so that the previous values are recorded. Here's an example of log entries left by a updt operation.

| 2012-06-15 - 13:16 | guest | mdrepo | TemporaryTestWeb.TestTopic | cur sites am datadir=/d/twiki/data pubdir=/d/twiki/pub server=strawman |  |
| 2012-06-15 - 13:16 | guest | mdrepo | TemporaryTestWeb.TestTopic | updt sites am datadir=/d/twiki/dat pubdir=/d/twiki/pu server=strawma |  |

When the mdrepo script is used from a command line, the topic name on the log is always Main.WebHome.

Audit trail is there by default. In case you want to suppress it, you can do it by setting a false value to $TWiki::cfg{Log}{mdrepo} configuration preference.

Transition to Sereal

Until June 2019, or 6.1.0 release, Mdrepo was two-tiered. A table's records are stored in a key value store whose class is specified by $TWiki::cfg{Mdrepo}{Store}, e.g. "DB_File". And a record value, which is also key value pairs, was serialized by Storable, which wasn't configurable.

Let's see shortcomings of that design.

Specifying a class for a key value store with a configuration parameter may look flexible, But in reality, there was not much point in the flexibility. Because there were assumptions which may not work for other classes than DB_File.

1. A class needed to be able to "tie".
2. A table's data needed to be stored in a single file whose name is identical to the table name.

Considering those, the two tier design increased complexity without practical benefits.

DB_File is not NFS-safe. If DB_File stores a file on NFS and the file is read/written by multiple NFS clients, there is no guarantee for data integrity.

Given the above, the current design serializes an entire table with Sereal, which makes Mdrepo simpler and NFS-safe. Soundness is achieved by writing to a temporary file and then replace the file with the real one. A change may be lost but no chance for a partially written file (=partial data) to be utilized.
