9.2.1 Single-Stage Decision Networks

The decision tree is a state-based representation because the worlds correspond to the resulting state. It is, however, often more natural and more efficient to represent and reason in terms of features, represented as variables.

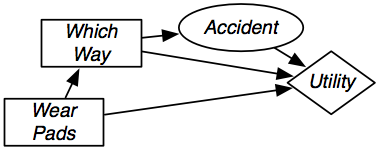

A single-stage decision network is an extension of a belief network that has three kinds of nodes:

• Decision nodes, drawn as rectangles, represent decision variables. The agent gets to choose a value for each decision variable. Where there are multiple decision variables, we assume there is a total ordering of the decision nodes, and the decision nodes before a decision node D in the total ordering are the parents of D.
• Chance nodes, drawn as ovals, represent random variables. These are the same as the nodes in a belief network. Each chance node has an associated domain and a conditional probability of the variable, given its parents. As in a belief network, the parents of a chance node represent conditional dependence: a variable is independent of its non-descendants, given its parents. In a decision network, both chance nodes and decision nodes can be parents of a chance node.
• A utility node, drawn as a diamond, represents the utility. The parents of the utility node are the variables on which the utility depends. Both chance nodes and decision nodes can be parents of the utility node.

Each chance variable and each decision variable has an associated domain. There is no domain associated with the utility node. Whereas the chance nodes represent random variables and the decision nodes represent decision variables, there are no associated utility variables. The utility provides a function of its parents.

Associated with a decision network is a conditional probability for each chance node given its parents (as in a belief network) and a representation of the utility as a function of the utility node's parents. In the specification of the network, there are no tables associated with the decision nodes.

Which Way	Accident	Value
short	true	0.2
short	false	0.8
long	true	0.01
long	false	0.99

Wear Pads	Which Way	Accident	Utility
true	short	true	35
true	short	false	95
true	long	true	30
true	long	false	75
false	short	true	3
false	short	false	100
false	long	true	0
false	long	false	80

A policy for a single-stage decision network is an assignment of a value to each decision variable. Each policy has an expected utility, which is the conditional expected value of the utility conditioned on the policy. An optimal policy is a policy whose expected utility is maximal. That is, it is a policy such that no other policy has a higher expected utility.

Figure 9.6 shows how variable elimination can be used to find an optimal policy in a single-stage decision network. After pruning irrelevant nodes and summing out all random variables, there will be a single factor that represents the expected utility for each combination of decision variables. This factor does not have to be a factor on all of the decision variables; however, those decision variables that are not included are not relevant to the decision.
