RMTool: User Interface

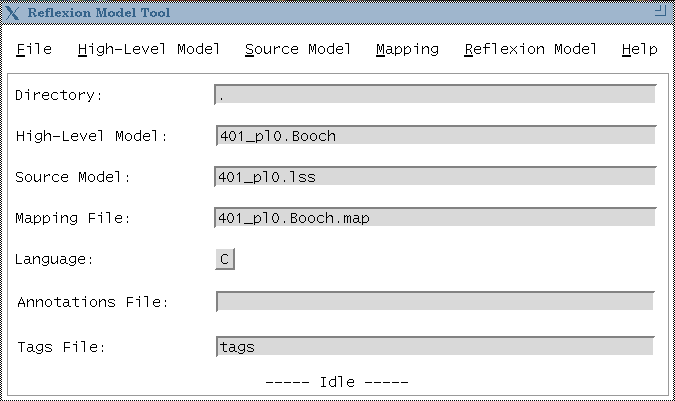

The RMTool user interface consists of three areas:

a menu bar at the top of the window that provides access to a number of commands and configuration options,
a file specification and tool configuration area in the middle of the window, and
a status line at the bottom of the window (e.g., ---Idle---).

Acknowledgements: Thanks to Kurt Partridge, Paul Bugni and the students of the graduate software engineering class (Spring Quarter 1995) for helping to design the RMTool User Interface.
