Cylinder Class Reference

Defines a cylinder, whose ends can be rendered as cones. More...

List of all members.

Public Methods
	Cylinder ()
	Cylinder (Coord bottom, Coord top, double radius, double topCone=0, double bottomCone=0)
void	setLocations (Coord bottom, Coord top)
void	setRadius (double radius)
void	setCones (double topCone=0, double bottomCone=0)
void	setParams (Coord top, Coord bottom, double radius, double topCone=0, double bottomCone=0)
void	getLocations (Coord &top, Coord &bottom) const
void	getRadius (double &radius) const
void	getCones (double &topCone, double &bottomCone) const
void	getParams (Coord &top, Coord &bottom, double &radius, double &topCone, double &bottomCone) const

---

Detailed Description

Defines a cylinder, whose ends can be rendered as cones.

The cylinder is defined by 2 coordinates (top and bottom), a radius, and the lengths of cones that can be drawn at its top or bottom. The height of each cone can be no more than half the cylinder's length (if it is longer, the cone will be drawn as having half the length of the cylinder).

Examples for cylinders with different parameters:

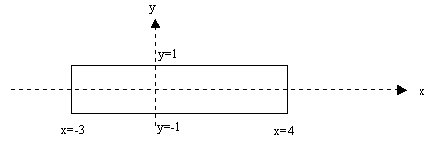

• bottom=(-3,0,0), top=(4,0,0), radius=2, bottomCone=topCone=0

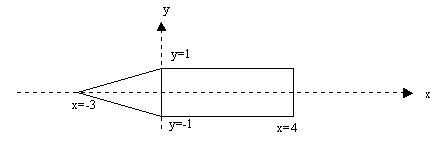

• bottom=(-3,0,0), top=(4,0,0), radius=2, bottomCone=3, topCone=0

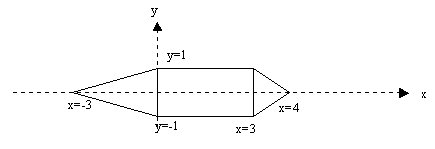

• bottom=(-3,0,0), top=(4,0,0), radius=2, bottomCone=3, topCone=1

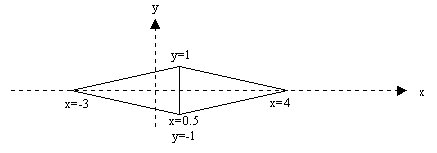

• bottom=(-3,0,0), top=(4,0,0), radius=2, bottomCone>=3.5, topCone>=3.5;


---

Constructor & Destructor Documentation

Cylinder::Cylinder (    )  [inline]

Default constructor. Initializes the radius to be DEFAULT_CYLINDER_RADIUS, and no cones (topCone=bottomCone=0).

Cylinder::Cylinder (  Coord    bottom, Coord    top, double    radius, double    topCone = 0, double    bottomCone = 0 )  [inline]

Constructor. Parameters: bottom  The bottom coordinate top  The top coordinate radius  The radius of the cylinder topCone  The length of the top cone (starts at the top coordinate inwards) bottomCone  The length of the bottom cone (starts at the bottom coordinate inwards)

---

Member Function Documentation

void Cylinder::getCones (  double &    topCone, double &    bottomCone )  const [inline]

Get the bottom and top cone lengths. Parameters: topCone  [output] The length of the top cone (starts at the top coordinate inwards) bottomCone  [output] The length of the bottom cone (starts at the bottom coordinate inwards)

void Cylinder::getLocations (  Coord &    top, Coord &    bottom )  const [inline]

Get the bottom and top coordinates. Parameters: bottom  [output] The bottom coordinate top  [output] The top coordinate

void Cylinder::getParams (  Coord &    top, Coord &    bottom, double &    radius, double &    topCone, double &    bottomCone )  const [inline]

Get all parameters. Parameters: bottom  [output] The bottom coordinate top  [output] The top coordinate radius  [output] The radius of the cylinder topCone  [output] The length of the top cone (starts at the top coordinate inwards) bottomCone  [output] The length of the bottom cone (starts at the bottom coordinate inwards)

void Cylinder::getRadius (  double &    radius )  const [inline]

Set the radius. Parameters: radius  [output] The radius of the cylinder

void Cylinder::setCones (  double    topCone = 0, double    bottomCone = 0 )  [inline]

Set the bottom and top cone lengths. Parameters: topCone  The length of the top cone (starts at the top coordinate inwards) bottomCone  The length of the bottom cone (starts at the bottom coordinate inwards)

void Cylinder::setLocations (  Coord    bottom, Coord    top )  [inline]

Set the bottom and top coordinates. Parameters: bottom  The bottom coordinate top  The top coordinate

void Cylinder::setParams (  Coord    top, Coord    bottom, double    radius, double    topCone = 0, double    bottomCone = 0 )  [inline]

Set all parameters. Parameters: bottom  The bottom coordinate top  The top coordinate radius  The radius of the cylinder topCone  The length of the top cone (starts at the top coordinate inwards) bottomCone  The length of the bottom cone (starts at the bottom coordinate inwards)

void Cylinder::setRadius (  double    radius )  [inline]

Set the radius. Parameters: radius  The radius of the cylinder

---

The documentation for this class was generated from the following file:

• cylinder.h

---
