params.h File Reference

Go to the source code of this file.

Max and min functions

#define MAX3(a, b, c)   ((a>b) ? (a>c ? a : c) : (b>c ? b : c))

#define MAX(a, b)   ((a>b) ? a : b)

#define MIN3(a, b, c)   ((a<b) ? (a<c ? a : c) : (b<c ? b : c))

#define MIN(a, b)   ((a<b) ? a : b)

Constants

#define MAX_STRING_SIZE   100

#define MAX_FACE_VERTICES   3

#define DEFAULT_LINE_WIDTH   5.0

#define DEFAULT_SPHERE_RADIUS   1.0

#define DEFAULT_CYLINDER_RADIUS   1.0

Object IDs

typedef long VertexID

typedef long EdgeID

typedef long FaceID

typedef long LineID

typedef long SphereID

typedef long CylinderID

typedef long SceneID

Enumerations

enum RESULT {
  OK, NullPointerGiven, OversizedString, FileNotFound,
  MeshNotValid, WrongFileFormat, VertexNotFound, EdgeNotFound,
  FaceNotFound, LineNotFound, SphereNotFound, CylinderNotFound,
  SceneNotFound, VerticesNotIncident, EdgesNotIncident, FacesNotIncident,
  SameVertexGiven, SameEdgeGiven, SameFaceGiven, FaceExists,
  TimeOut, VertexIsOrphan, SceneUnremovable
}

enum RENDER_MODE {
  SOLID, WIREFRAME, SOLID_AND_WIREFRAME, VERTICES,
  HIGHLIGHT_ONLY
}

enum AXIS { AXIS_X, AXIS_Y, AXIS_Z }

enum COLOR { R = 0, G, B }

Functions

RESULT getVersion (char *version)

Define Documentation

#define DEFAULT_CYLINDER_RADIUS 1.0

Default Cylinder radius.

#define DEFAULT_LINE_WIDTH 5.0

Default Line width.

#define DEFAULT_SPHERE_RADIUS 1.0

Default Sphere radius.

#define MAX ( a,
b ) ((a>b) ? a : b)

Calculate maximum of 2 values.

#define MAX3 ( a,
b,
c ) ((a>b) ? (a>c ? a : c) : (b>c ? b : c))

Calculate maximum of 3 values.

#define MAX_FACE_VERTICES 3

Maximum number of vertices in a Face (currently, only triangles are allowed).

#define MAX_STRING_SIZE 100

Maximum allowed string size.

#define MIN ( a,
b ) ((a<b) ? a : b)

Calculate minimum of 2 values.

#define MIN3 ( a,
b,
c ) ((a<b) ? (a<c ? a : c) : (b<c ? b : c))

Calculate minimum of 3 values.

Typedef Documentation

typedef long CylinderID

Identifies a cylinder.
A cylinder will retain its ID throughout the program unless it has been removed.

typedef long EdgeID

Identifies a half-edge, which is an edge with a direction (or side).
For example, the edge between vertices 0 and 2 has 2 half-edges: one is (0,2) and the other is (2,0). A half-edge will retain its ID throughout the program unless it has been removed. This leads to an edge having 2 ID's (one for each half-edge).

typedef long FaceID

Identifies a face.

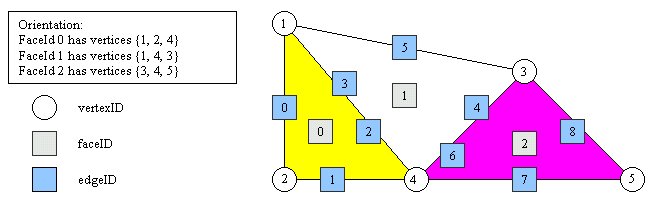

A face will retain its ID throughout the program unless it has been removed. The connection between a FaceID and an EdgeID is as follows: An edge of a face (with a faceID of j), will have one of the following ID's: (j*3, j*3+1, j*3+2). The edge with the ID of j*3 defines the 1st and 2nd vertices of the face. The edge with the ID of j*3+1 defines the face's 2nd and 3rd vertices, and the edge with the ID of j*3+2 defines the face's 3rd and 1st vertices. This is illustrated below:

It can be seen from this example, that most edges will have more than one edgeID (one for every face with which they are associated).

typedef long LineID

Identifies a line.
A line will retain its ID throughout the program unless it has been removed.

typedef long SceneID

Identifies a scene.
A scene will retain its ID throughout the program unless it has been removed.

typedef long SphereID

Identifies a sphere.
A sphere will retain its ID throughout the program unless it has been removed.

typedef long VertexID

Identifies a vertex.
A vertex will retain its ID throughout the program unless it has been removed.

Enumeration Type Documentation

enum AXIS

Defines an axis - X, Y or Z.

Enumeration values:

AXIS_X

AXIS_Y

AXIS_Z

enum COLOR

Defines an R, G or B color component.

Enumeration values:

R

G

B

enum RENDER_MODE

Describes the render mode.
In all these modes, the highlighted items are always shown
Enumeration values:

SOLID Render faces only.

WIREFRAME Render edges only.

SOLID_AND_WIREFRAME Render faces with the wireframe rendered on top.

VERTICES Render vertices only.

HIGHLIGHT_ONLY Render only highlighted items.

enum RESULT

The result of each operation.

Enumeration values:

OK Operation completed successfully.

NullPointerGiven One of the input parameters was NULL.

OversizedString A problem with the given string length.

FileNotFound Couldn't find the file to open.

MeshNotValid Mesh is either non valid or is not specified

WrongFileFormat VRML file in the wrong format (has no IndexedFaceSets or has other Geometry shapes as well).

VertexNotFound No vertex was found with the given VertexID.

EdgeNotFound No edge was found with the given EdgeID.

FaceNotFound No face was found with the given FaceID.

LineNotFound No line was found with the given LineID.

SphereNotFound No sphere was found with the given SphereID.

CylinderNotFound No cylinder was found with the given CylinderID.

SceneNotFound No scene was found with given SceneID.

VerticesNotIncident The 2 given vertices are not incident (do not share an edge).

EdgesNotIncident The 2 given edges are not incident (do not share a common vertex).

FacesNotIncident The 2 given faces are not incident (do not share an edge).

SameVertexGiven The 2 given VertexID's represent the same vertex.

SameEdgeGiven The 2 given EdgeID's represent the same edge.

SameFaceGiven The 2 given FaceID's represent the same face.

FaceExists Given face already exists in the mesh.

TimeOut There was a time-out while waiting for the user to pick an object.

VertexIsOrphan The given vertex is orphan (is not associated with any face, therefore doesn't have a neighborhood).

SceneUnremovable Scene cannot be removed (usually because the user asked to remove the current scene).

Function Documentation

RESULT getVersion ( char * version )

Get the current sotware version.

Parameters:

version An allocated

Return values:

OK Operation succeeded

NullPointerGiven version is NULL

Note:
If version is not NULL, the function will copy the version into it. version needs to be allocated by the user before use, and it should be long enough to contain the current version

MeshMaker 5.2 Manual
This software library was written by Roni Raab, ronir@cs.technion.ac.il.
Last updated on May 2003.
This software is for academic and research use only.
